UltraTNT™

UltraTNT - Ultralight laminate designed for Tents & Tarps

Built with two layers of 0.25 mil PET film with Ultra™ yarns inserted in the warp and CrossPly

Providing excellent ripstop capabilities in a dimensionally stable and waterproof fabric.

  • Ultralight

    UltraTNT™ weighs just 0.94oz/yd. 60” fabric width and roll lengths up to 200 yards allow for larger panels, minimizing seams and weight.

  • Dimensionally Stable

    UltraTNT™ features an enhanced fiber grid with Ultra™ yarns inserted at 0, 45, and -45 degrees, offering increased stability and durability.

  • Waterproof

    UltraTNT™ is waterproof to 200+ PSI and does not absorb any water weight.

  • 0.25 mil PET film

    Ultra™ yarn inserted in warp & CrossPly

    0.25 mil PET film

  • Weight: 0.94 oz/yd² , 32 gsm

    Width: 60 in , 152 cm

  • Waterproof

    200+ PSI, 13.8+ Bar

Challenge Sailcloth materials for constructing UltraTNT™ products

  • ACS is our proprietary brand of Seamstick.  A more economical solution with equal performance to other seamstick products on the market. Tissue carrier coated on both sides with ultra-high peel acrylic adhesive.  Designed to immediately adhere to most fabrics without heat assist.  Used to created bonded seams on film-to-film materials, without sewing.

    Total thickness: 5 mil

    Widths: 6mm, 9mm, 12mm, 19mm, 25mm

  • Constructed with two layers of 0.25 mil polyester film with light grey Ultra™ yarn inserted in the warp and bias. The backing is a pressure sensitive, high tack, non-yellowing adhesive.

    The tape is very stretch-resistant along the length of the roll, where there are straight, parallel Ultra™ yarns inserted to control stretch. The Ultra CrossPly™ yarn helps control bias stretch and adds tear-resistance to the tape.

    Widths: 5/8”, 1.25”, 2”, 3”, 4”, 52”

    UltraTNT™ PSA Tape Product Page

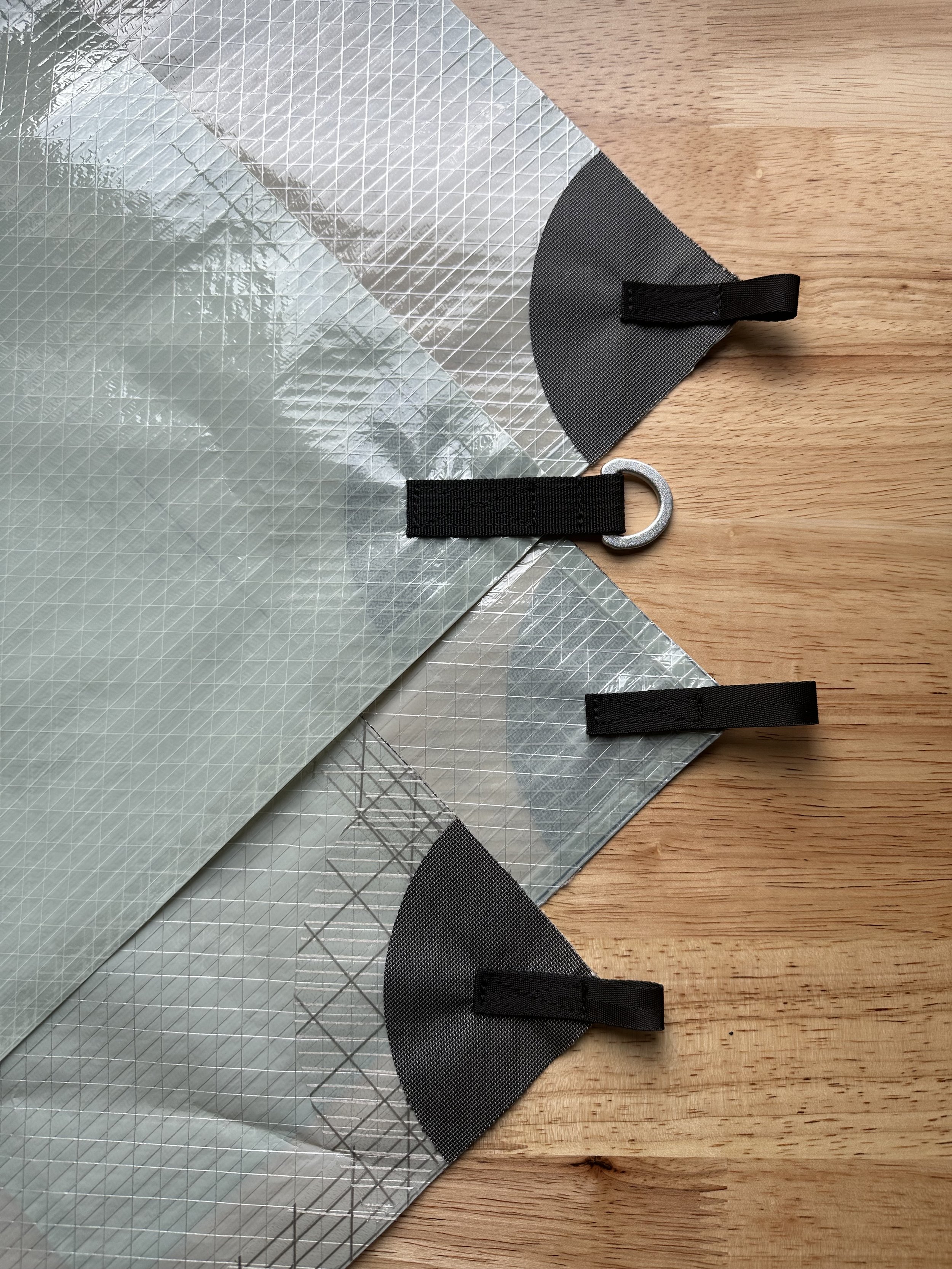

  • Ultra100 PSA takes our lightest and most advanced UltraWeave and applies fullwidth Pressure Sensitive Adhesive to the film side of the fabric. With a base weight of 2.92oz, Ultra100 has double the tear strength and almost double the abrasion resistance of 500d 8oz Cordura®. Adding the PSA backing creates an incredibly versatile material that is ideal for reinforcing tie-outs on UltraTNT™ shelters.

    Ultra100 PSA Product Page (bottom)

  • 70d x 100d woven polyester with 2 mils of high tack, non-yellowing acrylic adhesive.

    Insignia PSA Tape is designed for seam reinforcement, abrasion protection, and repair on lightweight fabrics. Insignia Tape is flexible and relatively stretchy; while it adds water-resistance, this tape is not intended for waterproofing seams.

    Insignia tape is applied to film before stitching, to add structure to a seam and keep the thread from combing through the film.

    1” PSA tape available in white, grey, & black.

Pricing | Ex Works, Challenge USA

MOQ | Full roll, ranging from 20-200 yards

Colors may present differently on different monitors*
